Products Name: Triac Dimming LED driver

Products Description:

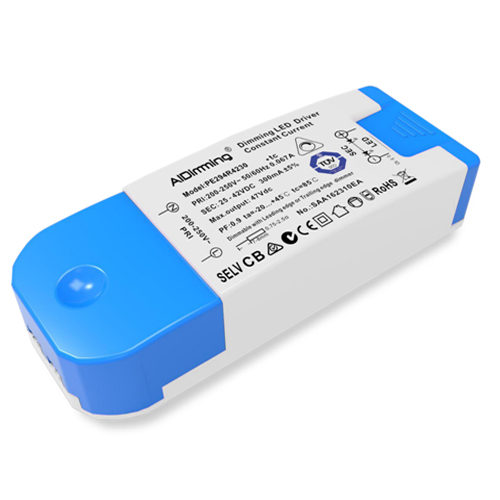

TRIAC Dimming LED Driver

Constant current

Low Flicker

Over temp protection

Over load protection

Short circuit protection

SAA:190297EA

Model	Model Number	Input	Rated power	PF.	Output Voltage	Output Current
PE294R Triac dimming 3-12W	PE294R4225	AC200V-250V	10.5W	0.88-0.91PF	25-42V	250mA
	PE294R4228		11.76W		25-42V	280mA
	PE294R4230		12.6W		25-42V	300mA
	PE294R2425		6W		12-24V	250mA
	PE294R2430		7.2W		12-24V	300mA
	PE294R2435		8.4W		12-24V	350mA
	PE294R2440		9.6W		12-24V	400mA
	PE294R2450		12W		12-24V	500mA
	PE294R1560		9W		6-15V	600mA
	PE294R1570		10.5W		6-15V	700mA
	PE294R0670		4.2W		3-6V	700mA
